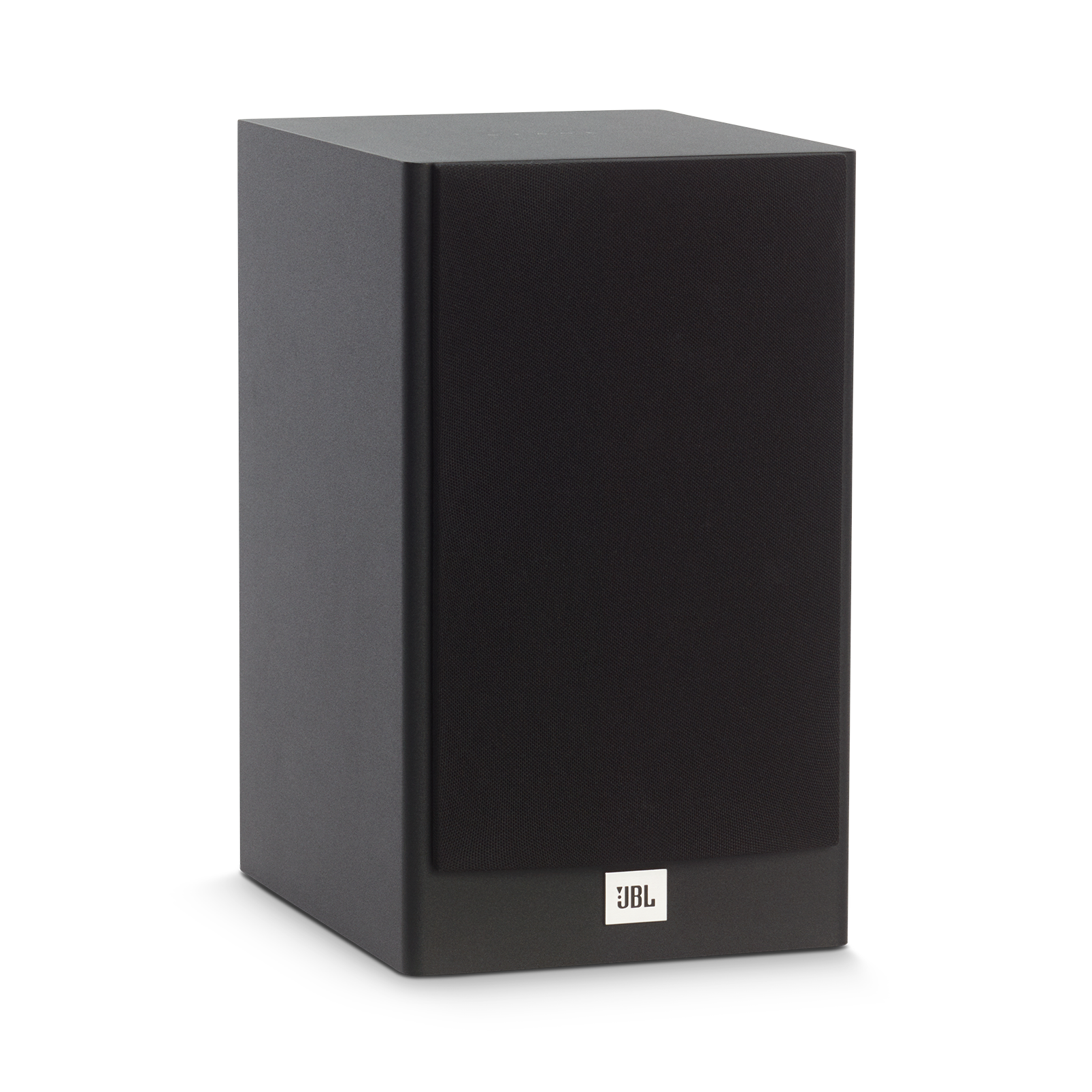

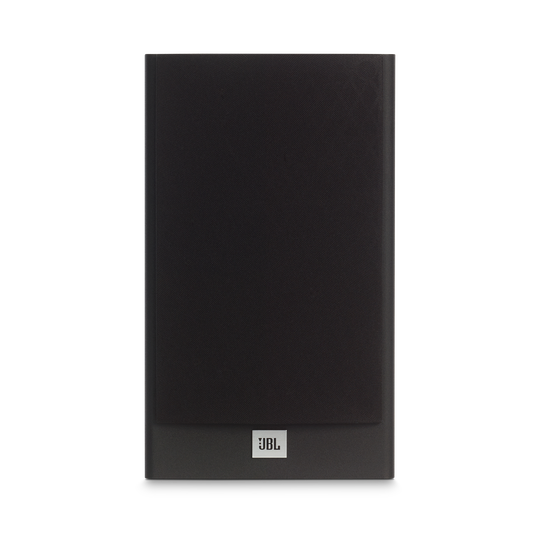

JBL Stage A130

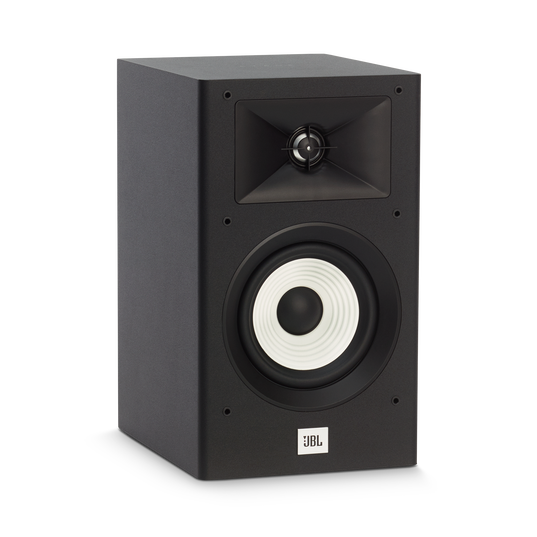

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A130 is the 5.25-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.
Features
5.25-inch (133mm) Polycellulose Low-Frequency Woofer
New High Definition Imaging (HDI) Waveguide
1-inch (25mm) Aluminum Dome Tweeter
Two-tone Unique Design for wood
Specs & Downloads
Item# JBLA130BLKAM
Product Description
JBL A130
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A130 is the 5.25-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.
General Specifications
2 way, 5.25" woofer, 1" aluminum tweeter bookshelf loudspeakers
Yes
5.25" (133mm) Polycellulose Low-Frequency Woofer
Yes
New High Definition Imaging (HDI) Waveguide
Yes
1” (25mm) Aluminum Dome Tweeter
Yes
Recommended Amplifier Power
20 – 125W
Frequency Response
55Hz – 40kHz
Sensitivity
86dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
3.2kHz
Enclosure Type
Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
190 x 230 x 321mm
Weight (each)
12.02 lbs (5.45kg)
What's in the box?
- 2 x JBL Stage A130 Bookshelf Loudspeaker
- 8 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
